Before you spot weld a single cell, you must master the Holy Trinity of electricity. This comprehensive guide moves beyond textbook definitions to explain how Voltage (Pressure), Amps (Flow), and Watts (Work) dictate every decision you make in battery pack design, from wire gauge selection to range calculation.
The Invisible Forces That Run Your Project
If you have ever stared at a datasheet for a Lithium-Ion cell and felt overwhelmed by the numbers, you are not alone. However, building a battery pack without a deep, intuitive understanding of Voltage, Current (Amps), and Power (Watts) is like trying to build a bridge without understanding gravity. You might get lucky, but when things go wrong, the results are catastrophic.
In the world of high-energy batteries—whether for electric skateboards, solar storage walls, or high-performance drones—these three metrics are not just abstract concepts. They correspond to physical realities: heat, speed, range, and fire safety. In this guide, we will strip away the academic fluff and look at Ohm’s Law through the eyes of a battery engineer.

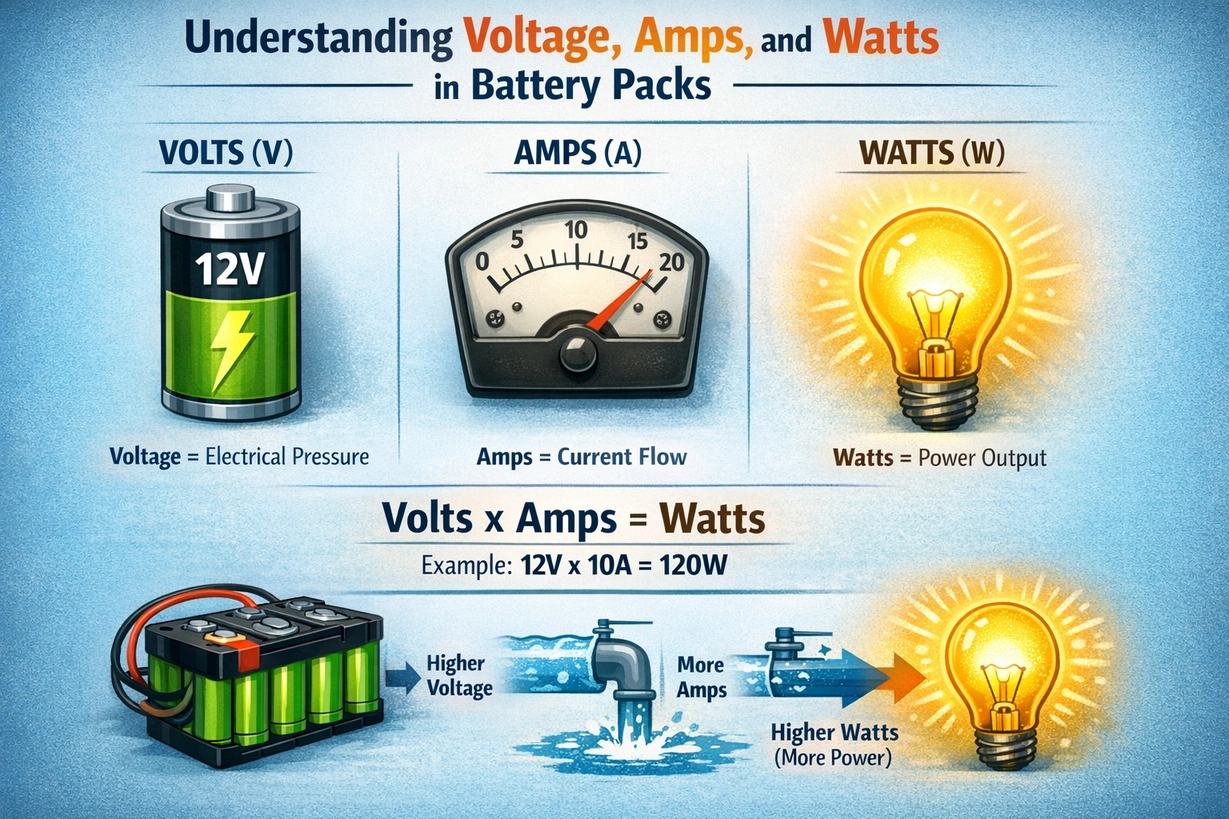

1. Voltage (V): The Electrical Pressure
Imagine a water tank sitting on top of a hill. The pipe coming down from it is your wire. Voltage is the water pressure in that pipe. The higher the hill (higher voltage), the harder the water pushes.
In a lithium battery, voltage determines two things: Motor Speed (RPM) and Efficiency.
The Three Critical Voltages
Unlike a standard AA alkaline battery which stays near 1.5V, a lithium cell is dynamic. Its voltage changes constantly based on its charge level. Understanding this curve is vital.
- Nominal Voltage (3.6V or 3.7V): This is the "label" voltage. It represents the average voltage over a full discharge cycle. When calculating the total energy (Watt-hours) of your pack, you always use this number. Using the max voltage will give you an inflated, unrealistic range estimate.
- Max Charge Voltage (4.2V): This is the ceiling. Pushing a cell past 4.20V forces lithium ions to overcrowding on the anode, leading to metallic plating. This is a primary cause of internal short circuits.
- Cut-off Voltage (2.5V - 3.0V): The floor. Below this point, the chemistry becomes unstable. The copper current collector can dissolve into the electrolyte, creating shunts that cause a fire the next time you charge.
Pro Tip: High-performance systems use higher voltage (e.g., 72V instead of 48V) because it allows them to achieve the same power with less current, reducing heat.
2. Amperage (I): The Volume of Flow
If Voltage is pressure, Amperage (Amps) is the actual volume of water flowing through the pipe. This is the most dangerous metric in battery building. Why? Because Amps create Heat.
When electrons flow through a conductor (wire, nickel strip, or cell tab), they encounter friction. This friction is called Resistance. The heat generated is calculated by the formula $P = I^2R$ (Current squared times Resistance). Notice that current is squared. If you double the current, you generate four times the heat.
C-Rating: The Speed Limit
Every cell has a limit on how fast it can dispense energy, known as the C-Rating.
Formula: Max Current = Capacity (Ah) × C-Rating.
Using a cell beyond its amperage limit causes "Voltage Sag." The pressure drops because the internal chemistry cannot keep up with the demand. This wasted energy turns into internal heat, cooking the cell from the inside out. For a detailed breakdown of this phenomenon, see our guide on Nominal vs Max Voltage calculations.
3. Watts (W): The Workhorse
Watts represent the actual power being delivered. It is the combination of Pressure and Flow.
Watts = Volts × Amps
This simple formula is the key to efficient design. Let’s say you need to power a 1000W motor for an e-bike. You have two choices:
- Low Voltage System (12V):
$1000W / 12V = 83.3 Amps$.
To handle 83 Amps, you need massive 4 AWG welding cables. Everything will get hot. The efficiency will be poor due to resistance losses. - High Voltage System (52V):
$1000W / 52V = 19.2 Amps$.
At 19 Amps, you can use thin 14 AWG wire. The system runs cool. The controller is smaller.
This is why Tesla uses 400V (and now 800V) architectures. By increasing voltage, they decrease amps, allowing for thinner wires and faster charging with less heat.
4. Capacity: Amp-Hours vs. Watt-Hours
This is the most common point of confusion.
Amp-Hours (Ah): Think of this as the physical size of the fuel tank. A 10Ah battery can deliver 1 Amp for 10 hours, or 10 Amps for 1 hour.
Watt-Hours (Wh): This is the total energy in the tank. $Wh = Ah imes V$.
The "Power Bank" Scam: You often see USB power banks advertised as "20,000mAh" (20Ah). This sounds huge! But it is rated at the cell voltage (3.7V), not the output voltage (5V).
Real Energy: $20Ah imes 3.7V = 74Wh$.
If you tried to draw that at 12V, you would only get about 6Ah.
Always compare batteries using Watt-Hours. It is the only universal currency of energy.
5. Resistance (R): The Enemy
Resistance restricts flow. In a battery pack, resistance comes from everywhere:
- Internal Resistance (IR): The chemistry of the cell itself.
- Contact Resistance: Poor spot welds or loose bolts.
- Conductor Resistance: The nickel strip or copper wire.
According to Ohm's Law ($V = I imes R$), voltage drops when current flows through resistance. This is called Voltage Sag.
If you have a 48V battery with 0.2 Ohms of total resistance and you pull 30 Amps:
$Voltage Drop = 30A imes 0.2Omega = 6 Volts$.
Your 48V battery instantly drops to 42V. The BMS might think the battery is empty and cut power, even though it is fully charged. This is why using Pure Nickel Strips and proper spot welding techniques is non-negotiable.
Summary: Applying This to Your Build
When designing your next pack, start with the Watts you need (Load).
Then, choose the highest Voltage your controller can handle to minimize current.
Finally, ensure your Amp-hour capacity is sufficient to provide the range (Wh) you desire, while ensuring the cells can handle the Amps without sagging.
