The instinct of every new builder is to spot weld all 100 cells into one massive monolithic block. In this architectural guide, we explain why building smaller 24V or 12V modules connected in series is safer, easier to repair, and the only way to future-proof your energy storage.
The Monolith vs. The Lego Block
Imagine you are building a 14kWh Powerwall using 1,000 cells.
Approach A (The Monolith): You weld all 1,000 cells into one gigantic 100lb block of lithium.

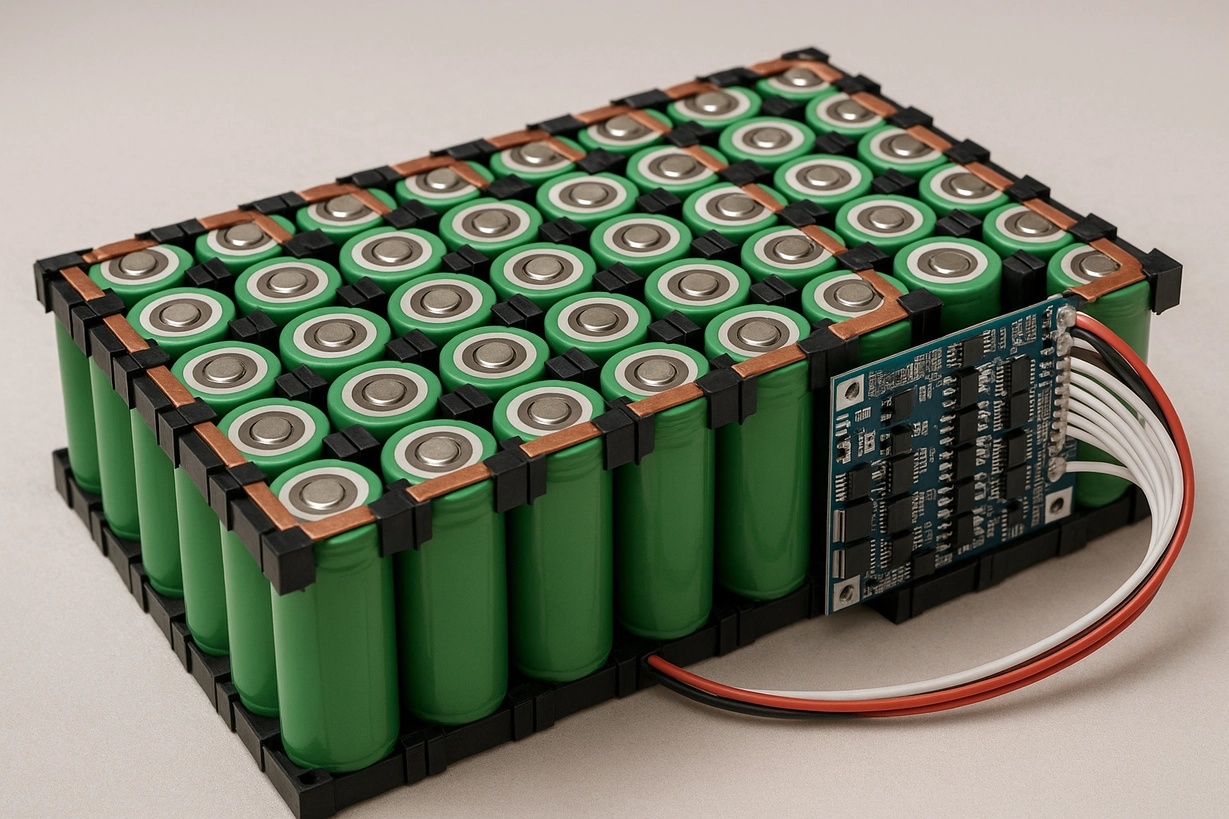

Approach B (Modular): You build ten smaller 1kWh "cartridges" and connect them with cables.
If one cell goes bad in Approach A, you have to dismantle the entire 100lb beast, cut nickel strips, and perform risky surgery on a live, high-voltage explosive.
If one cell goes bad in Approach B, you unplug that one module, put it on your workbench, and the rest of your house keeps running.
Modular design is the difference between a hobby project and professional engineering.
1. Safety During Assembly
Voltage kills.
- A 48V (16S) LFP battery can arc weld a wrench.
- A 400V EV battery can stop your heart.
By building modules, you keep the voltage low during the dangerous assembly phase.
If you build 24V (8S) modules, the maximum voltage is ~29V. This is "Touch Safe." You can accidentally touch the terminals without getting a lethal shock. You only create the dangerous high voltage at the very end, when you connect the modules in series using insulated cables.
2. Serviceability and Maintenance
Batteries degrade. Eventually, you will have a drifting cell group or a failed BMS.
In a modular system, you can swap out a module just like swapping a server blade. This allows you to perform maintenance (like capacity testing or top balancing) on one part of the bank without taking the whole system offline.
Furthermore, if you want to upgrade capacity later, you just plug in more modules. In a monolithic pack, you cannot easily add new cells to old cells.
3. Connection Methods: How to Link Modules
There are three main ways to connect your Legos.
A. Anderson Powerpoles (15A - 45A)
Great for small, parallel modules. They are genderless and click together. Perfect for portable 12V packs or small solar generators.
B. Anderson SB Series (50A - 350A)
The industrial standard. The SB50, SB120, and SB175 are color-coded (Red for 24V, Grey for 36V, Blue for 48V) to prevent plugging the wrong voltages together. They are robust, handle arcing well, and allow for a quick disconnect in an emergency.
C. Ring Terminals and Busbars
For stationary shelves (Server Racks). Each module has two threaded studs. You connect them using thick copper cables (2 AWG or 4/0) to a central busbar. This is the cheapest method but requires tools to disconnect.
4. BMS Strategy for Modular Packs
This is the tricky part. How do you manage the BMS?
Strategy 1: One BMS per Module (Distributed)
Every 24V module has its own 8S BMS.
Pros: Redundancy. If one BMS dies, the others survive.
Cons: Series limitations. Most cheap MOSFET BMS units cannot be put in series. If you connect two 24V batteries (with BMS) in series to make 48V, and one BMS cuts off, the FETs in that BMS will see the full 48V potential and blow up. You MUST check if your BMS is rated for "Series Connection."
Strategy 2: Master/Slave System (Centralized)
You build "dumb" modules with just cells and balance leads coming out. These leads plug into a central "Master BMS."
Pros: Unified control. The BMS sees the whole picture.
Cons: Wiring nightmare. You have dozens of thin sensing wires running between boxes. If you unplug a module, the system fails.
Strategy 3: The Parallel Standard
The industry has settled on 48V Parallel Modules.
Instead of building small voltage blocks (24V) and putting them in series, you build full voltage blocks (48V) and put them in parallel.
This is how Server Rack batteries work. Each box is a standalone 48V battery with its own BMS. You just keep adding boxes in parallel to increase capacity. This is the safest and most scalable method for home storage.
5. Physical Construction
A module needs a chassis.
- Ammo Cans: Cheap, fire-resistant, handle included. Great for 12V/24V modules.
- 3D Printed Cartridges: Custom fit for your cells. Use PETG for heat resistance.
- Extruded Aluminum (T-Slot): Professional look, acts as a heatsink.
6. Compression in Modules
If using Prismatic cells, every module must have its own Compression Fixture. You cannot rely on the shelf to compress the cells. The module itself should be a self-contained, compressed unit containing the cells and the BMS, with only two heavy terminals exposed.
Summary
Don't be a hero. Don't build a 200lb battery that you can't lift. Build manageable, safe, 40-50lb modules. It makes shipping, moving, fixing, and upgrading infinitely easier. The future of energy storage is decentralized, right down to the pack level.
