Safety vs. Density. 3000 cycles vs. 800 cycles. The battle between Lithium Iron Phosphate and Nickel Manganese Cobalt is the most important decision in your system design. In this deep dive, we analyze the bond structures, thermal runaway thresholds, and discharge curves to help you decide which chemistry belongs in your garage.
The Two Philosophies of Energy Storage
In the lithium battery world, there are two dominant tribes.
On one side, you have the NMC / NCA (Nickel Manganese Cobalt / Aluminum) camp. These are the chemistry of Tesla, high-end smartphones, and performance drones. They prioritize Energy Density and speed above all else.
On the other side, you have the LiFePO4 (Lithium Iron Phosphate, or LFP) camp. These are the workhorses of solar storage, RVs, and buses. They prioritize Safety and Longevity.
Choosing the wrong chemistry for your application is not just inefficient; it can be dangerous. Let's strip away the marketing and look at the molecular differences.
1. The Molecular Bond: Oxygen Management
The primary difference lies in the cathode material.
NMC (LiNiMnCoO2): The oxygen in the cathode is held by a relatively weak metal-oxide bond. When the cell heats up (due to overcharging or physical damage), this bond breaks easily, releasing oxygen.
LFP (LiFePO4): The oxygen is held in a Phosphate ($PO_4$) bond. In chemistry, the phosphorus-oxygen bond is incredibly strong (covalent). It is extremely difficult to break this bond, even at high temperatures.
Why This Matters for Safety
Fire needs three things: Heat, Fuel, and Oxygen.
Inside a battery, the electrolyte is the Fuel. The short circuit provides the Heat.
In an NMC fire, the cathode decomposes and provides its own Oxygen. This means you cannot smother an NMC fire. It will burn underwater. It will burn in a vacuum. It burns until the fuel is gone.
In an LFP cell, the oxygen stays locked in the phosphate molecule. If an LFP cell shorts, it gets hot, vents smoke, and maybe creates a small flame from the electrolyte, but it rarely enters the violent, self-sustaining "Thermal Runaway" loop that NMC does. (See Thermal Runaway Points).
2. Cycle Life: The 10-Year Battery
When you charge a battery, lithium ions physically move into the anode. This causes the materials to expand and contract.
NMC: The crystal structure degrades over time. Typical rating: 500 to 1000 Cycles (to 80% capacity).
LFP: The olivine crystal structure is extremely stable. Typical rating: 3000 to 6000+ Cycles.
Real World Math:
If you cycle your battery once a day:
NMC lasts ~2-3 years before noticeable degradation.
LFP lasts ~10-15 years.
For a solar home installation where you want to install it and forget it for a decade, LFP is the only logical choice.
3. Energy Density: The Weight Penalty
If LFP is so safe and lasts forever, why doesn't Tesla use it in the Model S Plaid?
Answer: Weight.
LFP has a lower nominal voltage (3.2V) compared to NMC (3.6V/3.7V). It also holds fewer lithium ions per gram of material.
- NMC Density: ~250 Wh/kg.
- LFP Density: ~150 Wh/kg.
An LFP battery will be nearly twice as heavy and 30% larger than an NMC battery of the same capacity.
For a house (Powerwall), weight doesn't matter. The concrete slab doesn't care if the battery weighs 200lbs or 400lbs.
For a drone or a performance car, that extra weight kills performance and range.
4. The Voltage Curve Challenge
NMC has a steep, linear discharge curve.
4.2V = 100%
3.6V = 50%
3.0V = 0%
It is very easy for a BMS to read the voltage and tell you exactly how much percentage is left.
LFP has a famously Flat Curve.
3.40V = 99%
3.29V = 70%
3.28V = 40%
3.00V = 1%
Between 80% and 20% charge, the voltage barely changes. It sits around 3.2V - 3.3V the entire time. This makes it incredibly difficult for cheap BMS units to estimate "State of Charge" (SOC). You need a high-quality Coulomb Counting BMS (Smart Shunt) that measures amps in/out rather than relying on voltage, or you will never know if your battery is half full or nearly empty.
5. Cold Weather Performance
Both chemistries suffer in the cold, but LFP is more sensitive.
While NMC can often be charged at reduced rates down to 0°C or -5°C (with care), LFP is strictly Forbidden to Charge below 0°C. Doing so causes immediate, permanent plating damage.
If you use LFP in an unheated garage or RV, you must have heating pads and a BMS with a Low-Temp Cutoff sensor.
6. Cost
Cobalt and Nickel are expensive, rare, and subject to volatile supply chains (and ethical mining concerns).
Iron and Phosphorus are dirt cheap and abundant.
LFP cells are significantly cheaper per kWh than NMC cells. This economic advantage, combined with the cycle life, makes the "Levelized Cost of Storage" (Total Cost / Total Useful Cycles) of LFP unbeatable for stationary storage.
Summary: Which One to Build?
Choose NMC (18650/21700) if:
- You are building an E-Bike, Electric Skateboard, Drone, or portable tool.
- Weight and size are critical constraints.
- You need extreme discharge currents (C-Rating > 5C).
Choose LFP (Prismatic) if:

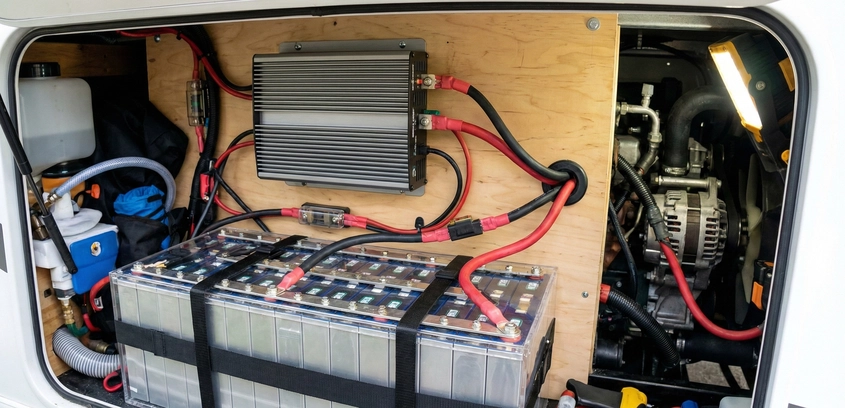

- You are building a Solar Powerwall, RV House Bank, or Marine Bank.
- You want the battery to last 10+ years.
- You are storing the battery inside your home and want maximum fire safety.
- You are on a budget and weight is irrelevant.
Ultimately, the "best" chemistry is the one that matches the specific needs of your physics problem. Don't force a heavy LFP brick onto a racing drone, and don't put a volatile NMC bomb in your basement solar closet.
